Distance Estimation on Ultrasonic Sensor Using Kalman Filter

Muhammad Haryo Setiawan 1, Alfian Ma’arif 1, Hamzah M. Marhoon2, Abdel-Nasser Sharkawy3, 4, Abdullah Çakan5

1 Department of Electrical Engineering, Universitas Ahmad Dahlan, Yogyakarta, Indonesia

2 Departemen of System Engineering, Collegee of Information Engineering, Al-Nahrain University, Jadriya, Baghdad, Iraq

3 Mechatronics Engineering, Mechanical Engineering Department, Faculty of Engineering, South Valley University, Qena 83523, Egypt

4 Mechanical Engineering Department, College of Engineering, Fahad Bin Sultan University, Tabuk 47721, Saudi Arabia

5 Konya Technical University, Konya, Turkey

1. INTRODUCTION

Distance measurement is a fundamental quantity that has traditionally been measured using tools such as rulers, calipers, and micrometer screws. However, in modern times, there is a wide range of advanced measuring tools available, including ultrasonic sensors [1], infrared devices [2], lasers [3], and LIDAR [4], although the latter can be costly. These modern tools typically require additional electronic components, such as microcontrollers for distance measurement and LCD displays to showcase the results. Their applications are extensive and varied, encompassing navigation for vacuum robots [5], [6], UAVs [7], [8], height measurement [9]–[11], water level monitoring [12]–[14], car parking distance indicators [15]–[17], and daily distance measurement.

Distance measurement using modern sensor, especially ultrasonic sensor has several disadvantages from external factor such as noise from other tools with high frequency, distortion among objects and the influence from animal with ultrasonic sound ability which may interfere the measurement. Hence, a method is needed to estimate the real measurement for getting more accurate.

In this research, ultrasonic sensor is used to measure the distance on object. This sensor has weaknesses since it is very sensitive toward the changes and has noise from external factor. Thus, a method is needed to overcome the weakness. In this research, Kalman Filter method [18]–[20] will be used to overcome the weakness.

Several researches that have been done using ultrasonic sensor are; the use of ultrasonic sensor which is installed in arrays to detect moving object [21], distance measurement and object detection with wide range up to 180˚ using 5-volt servo motor [22]. Another implementation of ultrasonic sensor is used in the oil tank volume monitoring system [23].

Based on the background described above, the research contribution is about application of Kalman Filter to estimate the distance which is so interesting to do. With the characteristic of ultrasonic sensor which is unstable, has a noise and a lot of implementations can be implemented, it arises challenge for the researcher to design the distance estimation system using Kalman Filter method. The first part of this research is introduction. The second part is proposed method. The third part is research method. The fourth part is result and discussion. The last part will be conclusion.

2. METHODS

2.1.  Ultrasonic Sensor

Ultrasonic sensor is based on the principle of sound wave reflection to get the distance of an object with a certain frequency. Ultrasonic waves are sound waves that have a high frequency, above 20,000 Hz (20 kHz). Ultrasonic sensors have two main components; the transmitter and the receiver which are connected to a piezoelectric crystal. An alternating voltage is applied to a metal plate to produce ultrasonic waves that are emitted into the air. If there is an object, then the ultrasonic waves will be reflected and received back by the receiver. This reflected wave produces an alternating voltage with the same frequency [24], [25]. Figure 1 shows the illustration of measurement ultrasonic sensor.

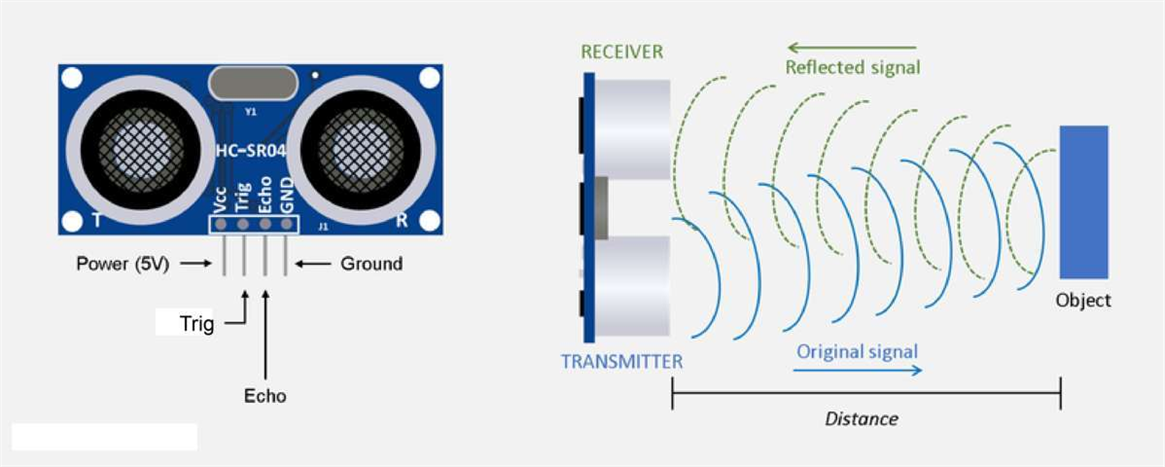

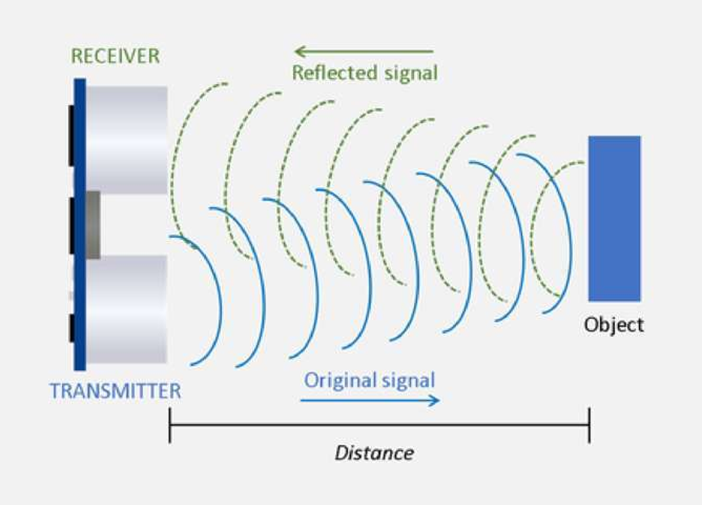

Figure 1. Illustration of measurement ultrasonic sensor

2.2.  Kalman Filter

The Kalman Filter was published in 1960 by Rudolf E. Kalman, the first person who developed this algorithm. Kalman Filter is a mathematical algorithm that estimates values on data or sensors to reduce the Root-Mean-Square Error (RMSE) of the system [26]. The Kalman Filter is a reliable in the various aspects of application; it can estimate both the previous and the current data, even can predict the next data, and can make estimates in a system state where the model is unknown.

The Kalman Filter has several mathematical derivatives, such as the Standard Kalman Filter, Extended Kalman Filter [27], Unscented Kalman Filter [28], [29], and Ensemble Kalman Filter [30]  The Standard Kalman Filter is the simplest filter rather than other derivatives. In this research,  The Standard Kalman Filter is used to estimate the distance measurement, in which the parameter used is sufficient for noise reduction. The Kalman Filter is often carried out in two phases; prediction and update. The standard Kalman Filter mathematical equation is shown in equations (1)-(5).

Prediction:

Update:

These variables state for:  is the expected value,   is the transition matrix, u is the control variable,  is the control matrix,  is the variation matrix,  is the process of variation matrix,  is the measurement variable,  is the matrix measurement,  is the Kalman reinforcement,  is the variation matrix measurement,  is the current time period,  is the previous time period, and   are intermediate steps.

Equations (1) to (5) are a general model of the Kalman Filter system that can be modified according to the needs and complexity of the built system. Hence, there is a way to implement the Kalman Filter algorithm to reduce noise on sensor readings and make some adjustments according to the required conditions. Some of the adjustments made are:

1. Predicting sensor value

In this section, adjustments are made to equation (1) by assigning a value  because it has no transition value. Thus it can reduce system input variables that have no input. The adjusted equation is shown in equation (6).

2. Predicting error value on sensor

By following , then equation (2) is adjusted to be equation (7).

3. Updating prediction value

In equation (3), the value , int which the sensor value to be filtered is only one sensor reading. So it can be written as equation (8).

4. Calculating Kalman’s reinforcement value

By following , then equation (4) can be written as equation (9).

5. Updating the error value on the sensor

By following , then equation (5) can be adjusted to be equation (10).

2.3.  System Design

To make it easier in understanding the application of distance estimation using this ultrasonic sensor, please see the details of system block diagram in Figure 2 and flowchart in Figure 3.

Figure 2. System Blok Diagram

According to Figure 1, the device used in this research is Arduino UNO as a microcontroller, Ultrasonic HC-SR04 as a distance estimation sensor, LCD to display the estimated value, and a Laptop that functions for Arduino serial data communication and as a 5-volt power supply for Arduino using the USB A port. Arduino power supply is used to supply the HC-SR04 ultrasonic sensor and LCD.

Figure 3. Flowchart System

Figure 3 shows how the process of the system flow running in this research. Started by initializing sensor and parameter  for estimating using Kalman Filter, then Sensor value block is the process of distance data retrieval that will be estimated by Kalman Filter. Predict Sensor value block is process that predicting sensor value using equation (6). Predict error sensor value block is the difference value between predicted value and actual value according equation (7). Updating prediction sensor value block is the process that update predicted for the next prediction using equation (8). Predicted Kalman Filter block is the process of showing estimated data into LCD. Calculate Kalman reinforcement value block is calculating Kalman gain for the input error value according equation (9). Updating error value block is the process that update error for the next calculation according equation (10).

3. RESULT AND DISCUSSION

Estimation distance testing is conducted using measurement method with ultrasonic sensor, then compared with actual measurement using a ruler. Table 1 shows the comparison testing data between ultrasonic sensor measurements and actual distances (in cm).

Table 1. Comparison table between sensor measurement and actual distances (in cm)

According to Table 1, ultrasonic sensor measurement value has various errors, from  on 10 – 50 cm measurement distances with a difference between distances of 10 cm. By reaching 7.70% error value, it can cause measurement error. Then filtering using Kalman Filter is carried out to solve the problem, but turning parameter step is needed in this algorithm. Figure 4 are graphics that show turning parameter step R and Q in Kalman Filter algorithm.

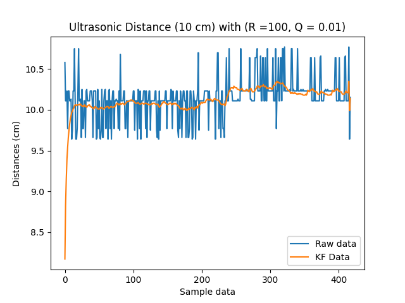

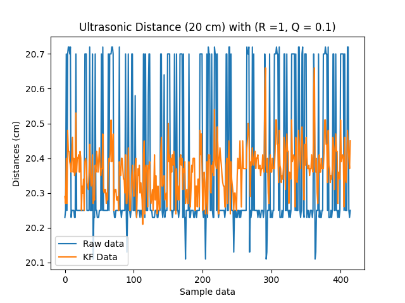

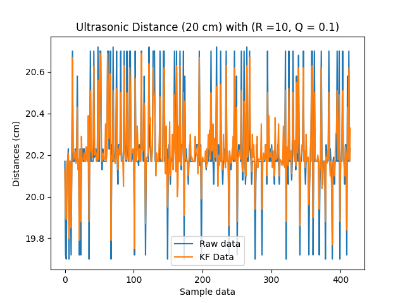

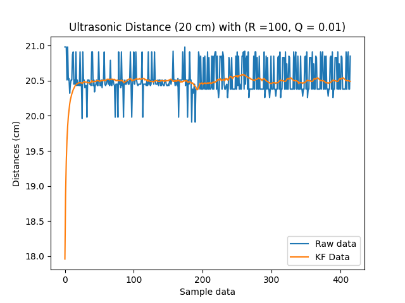

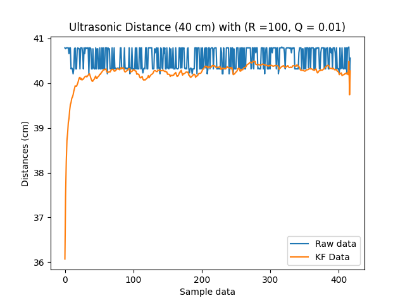

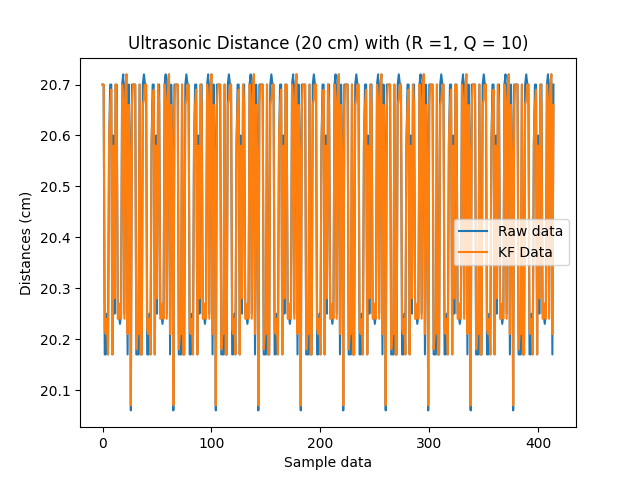

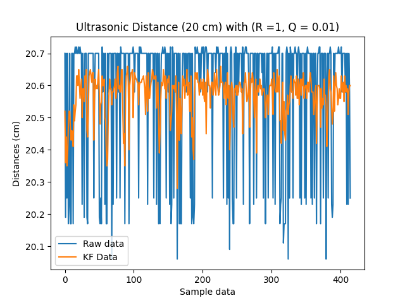

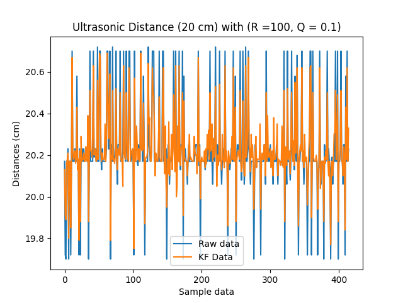

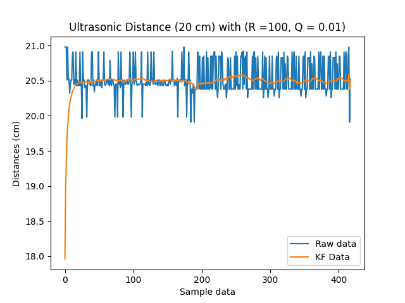

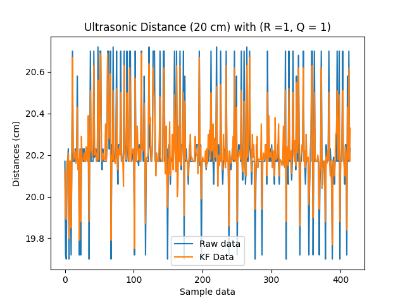

The results obtained from the test with blue data is raw data that wasn’t filtered with Kalman Filter and the orange color was the filtered data using Kalman Filter with differences parameter R and Q. Figure 4 reveal an interesting observation the Q parameter value surpasses the R parameter value, indicating that the distance estimation measurements in this case remain unfiltered by the Kalman Filter. However, Figures 4 showcase measurement data that has undergone filtering, although some residual noise remains present. Notably, the data exhibits superior quality compared to the test depicted in Figure 4, primarily due to the utilization of a smaller Q parameter value in relation to the R parameter value, resulting in more effective filtering. The most favorable measurement outcomes are obtained when employing parameter values of R = 100 and Q = 0.01, as demonstrated in Figure 4. It is worth mentioning that there is a slight delay at the beginning, with the sensor taking approximately 4-6 seconds to reach optimal performance.

Following the successful determination of the optimal R and Q parameter values through extensive testing, further evaluations were conducted at distances of 10, 20, 30, 40, and 50 using these ideal parameter values. The outcomes of these distance estimation tests using the R = 100 and Q = 0.01 parameter values are presented in Figure 5, showcasing the accurate results achieved.

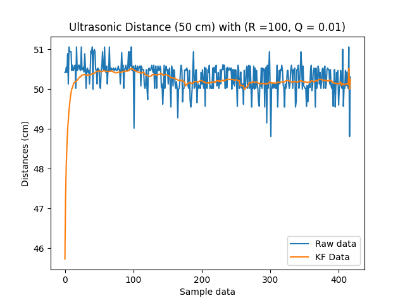

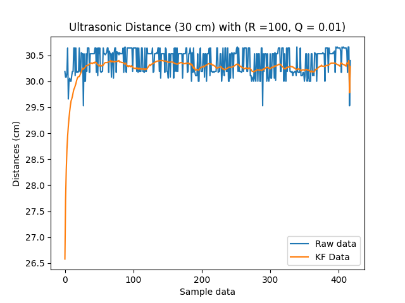

Figure 5 provides valuable insights into the optimal distance estimation measurements obtained from the ultrasonic sensor across various distances, particularly within the range of up to 50 cm. It is important to note that although there may be a slight delay in the initial stages of the measurement, the overall performance remains highly satisfactory. Additionally, Table 2 presents a comprehensive comparison between the sensor's filtered values and the corresponding actual values, allowing for a thorough analysis of their alignment and accuracy.

Table 2. Comparison table of measurement between filtered sensor and actual distances (in cm)

According to Table 2, the distance measurement results obtained using the HC-SR04 ultrasonic sensor and the Kalman Filter method. Notably, the measurements exhibit an impressively low error value, consistently below 3%. Furthermore, the error measurement is only 0.6% compared to the actual distance. These findings unequivocally demonstrate the effectiveness of the designed Kalman Filter algorithm, which has significantly increased the efficiency and accuracy of distance measurement.

4. CONCLUSIONS

This study proposes the utilization of the Kalman Filter algorithm for distance estimation measurements using an ultrasonic sensor despite the time required to achieve measurement stability around 4-6 second in this system. The results indicate that using the Kalman Filter algorithm significantly enhances the accuracy of distance measurement compared to not using the algorithm. Optimal parameter values for the Kalman Filter in this system are determined to be  and . The process of fine-tuning these parameters involves employing a trial-and-error methodology, systematically testing values from the lowest to the highest until obtaining the most effective parameter values. This method takes a long time for data analysis process in data analyzing process. However, it is worth that this approach necessitates a substantial amount of time for data analysis. As a suggestion for future research, it is recommended to explore alternative tuning methods for determining the Kalman Filter parameters.
